The TLV743P is an ultra-small, low quiescent current, low dropout linear regulator delivering 300 mA with good line and load transient performance. The TLV743P device provides foldback current control during device power-up and enable, which is especially important in battery-operated devices. The device offers a typical accuracy of 1%.

The TLV743P provides an active pull-down circuit that quickly releases the output load when the device is disabled.

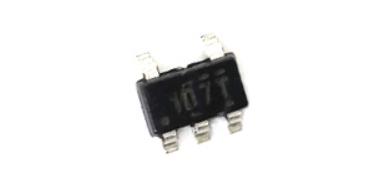

The TLV743P is available in a standard SOT-23 package.

Product features:

• Input voltage range: 1.4V to 5.5V

• Stable operation with 1µF ceramic output capacitors

• Foldback overcurrent protection

• Very Low Dropout: 125mV at 300mA (3.3 VOUT)

• Accuracy: 1% (typ), 1.4% (max)

• Low IQ: 34µA

• Provides a fixed output voltage:

1V to 3.3V

• High PSRR: 50dB at 1kHz

• Active output discharge
