Product description:

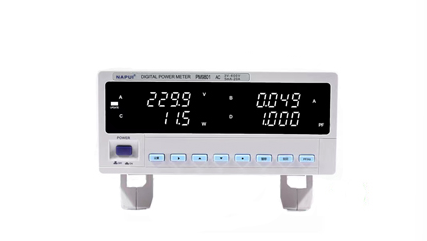

PM9801 AC Voltage Current Power tester
Power consumption tester for testing ASIC Miner or GPU Miner and edge products, but also for other electrical equipment.
Measuring range: 0.1W to 12KW
Key parameters:
| Cable connection method | Simplex |
| Measurement item | Voltage V, current A, effective power W, power factor PF, frequency Hz |
| Measurement form | Valid valueTrms |
| Measuring voltage range | 3V - 600V AC |
| Measuring current range | 5mA - 20A AC / Peak current 23A AC |
| Measurement power range | 0.1W - 12KW |
| Measurement frequency range | 40 - 400Hz |
| Measuring speed | 3 times per second |
| Input resistance | 2MΩ |
| Power supply | 100 - 240V AC / 45 - 440Hz / 100 - 300V DC |
| Product Size | 225*112*355mm |
