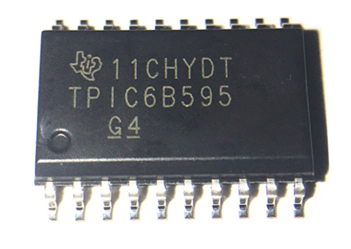

TPIC6B595DWR

TPIC6B595DWR power driver applications include relays, solenoids and other medium current or high voltage loads. The device contains an 8-bit serial input parallel output shift register that supplies power to the 8-bit D-type storage register. Data is transferred through the shift register and storage register on the rising edges of the shift register clock and register clock , respectively. When the shift register clear is high, the storage register transfers data to the output buffer. When SRCLR\ is low, the input shift register is cleared. When the output enable remains high, all data in the output buffer remains low, and all drain outputs are turned off.
