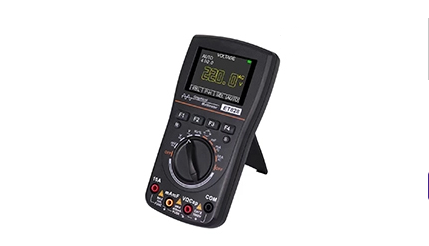

ET828 intelligent graphical digital oscilloscope multimeter 2 in 1 is made of high-quality materials, practical, easy to operate and use wide application range, and has a long service life.

Product parameters:

Display: 320*240

Battery: AA*3

Storage: 100 sets of data/10 sets of waveforms

Operating environment: 0~40°C, <75%RH

Storage environment: -10~60℃, <90%RH

Size: 160*83*32mm

Use time: about 10 hours

Waveform simulation bandwidth: ACV/1MHz

Max. Real-time sampling rate: 2.5Msps

Multimeter specifications:

Voltage: 400mV~1000V

AC voltage: 400mV~750V

DC current: 40mA~10A

AC current: 40mA~10A

Resistance: 400.0Ω~40.00MΩ

Capacitance: 51.2nF~100uF, 10.00mF

Frequency: 5Hz~5MHz

Duty cycle: 0.1%~99.9%

Diode test: test voltage about 1.5V

Continuity test: test resistance <50Ω, buzzer sounds

Product features:

1. This is a clamp-type multimeter with high reliability, high precision, and easy to carry;

2. Multi-function can accurately measure AC and DC voltage, current, capacitance, and resistance;

3. With an LCD backlight display, it is convenient to read data in the dark;

4. Manual range, data hold, diode test, continuity test;

5. It has many applications and is an ideal tool for laboratories, factories, and families
