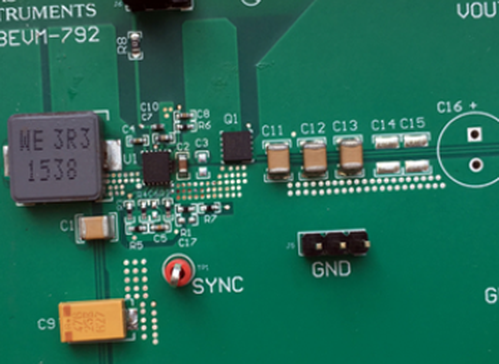

TPS61178

TPS61178x uses fixed frequency peak current mode control with integrated slope compensation. At light load, TPS61178 enters automatic PFM mode, while TPS611781 is in forced PWM mode.

The TPS61178x can isolate the output from the input side during shutdown. Once the output is short-circuited, it enters hiccup mode to reduce thermal stress, and can automatically recover after the short-circuit is released. In addition, TPS61178x also has OVP and thermal protection to avoid malfunction.

Input voltage range: 2.7V to 20V

Output voltage range: 4.5V to 20V

Programmable switching peak current: up to 10 A

Integrated two 16mΩ FETs

Up to 96% efficiency: V IN = 7.2 V, V OUT = 16 V, I OUT = 2 A

Adjustable switching frequency: up to 2.2 MHz

External clock synchronization: 200 kHz to 2.2 MHz

Gate driver for load disconnection

Automatic PFM operation-TPS61178

Forced PWM mode-TPS611781

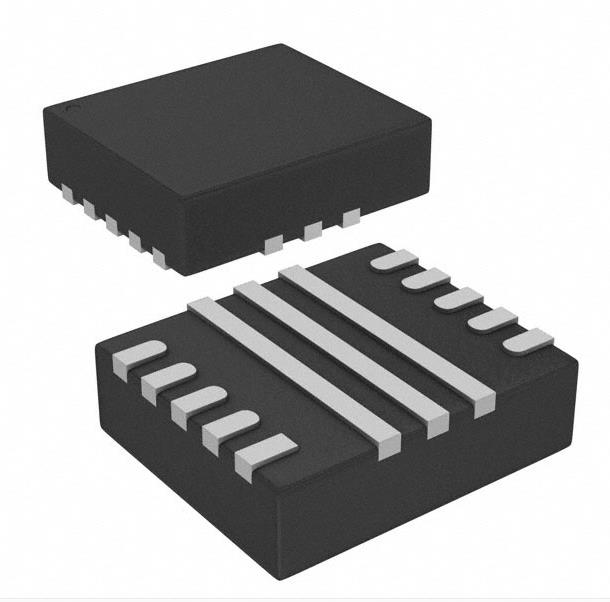

3.0-mm x 3.5-mm 13-pin VQFN Hotrod package
