Electronic magnifier

About this item
Price : $39
MOQ : 1 pcs
Weight : 1.5 KG
+ Add to cart
Product detail
Product description:

Maintenance tools: 1000 times Electronic digital magnifier, 4.3-inch screen

The electronic magnifying glass is a repair tool for repairing small circuit boards, such as mobile phone motherboards, miner hash boards, control boards, etc. It is a digital microscope with a 4.3-inch LCD screen of 1000 times, zero vision distance, convenient carrying, and 1080P high-definition display The screen is enlarged, and the LED light can be adjusted. Economical and cost-effective.

his product is integrated with a screen and a high-definition large screen, allowing you to more intuitively observe the items you need to inspect. The high-definition picture, worry-free measurement, and strong light adaptability.


Features:

1. 8 bright white LED soft light supplement light, easy to deal with various scenes, can be used day and night;

2. Adjustable 0x-1000x focus, making one-handed operation more convenient;

3. The universal rotating base makes observation more stable, even if your hands are shaking;

4. USB interface charging, get rid of the troubles of the data line, making observation more convenient;

The product uses a high-definition camera and high-definition screen.

Many products on the market with similar appearance use inferior cameras and screens, please pay attention to distinguish.

magnifying glass for electronic repair

Product parameter

Product magnification 50X-1000X
Lens structure 2G+1R
Field of view 16°(Specific according to the lens)
Number of LEDs 8 SMD3528 high-brightness white lights (brightness adjustable)
Focus mode and focus range Manual adjustment: 0~40mm
Imaging distance 3mm to infinity
Sensor size 1/7.5''
Signal to noise ratio 45db
Sensitivity 3V/lux-sec
Video recording format AVI
Video resolution 640*360
Working range 0-10m (open scenes, occluded scenes will affect the working range)
Working hours ≥90 minutes (full power state, battery life also affects working hours)
Power supply 650mah built-in lithium battery
Charging requirement DC-5V/1A
Working current ~270mA
Working temperature 0°C~40°C
Storage temperature -10°C~60°C

portable electronic magnifier





What do customers buy after viewing this item?

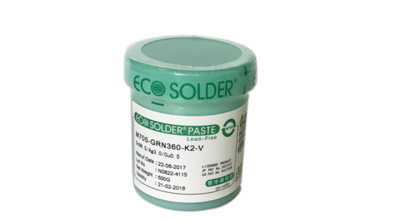

Senju M705-GRN360-K2-V high temperature solder paste
MOQ : 1 pcs
Weight : 0.5 KG
$62
500X HD Handheld Electronic Digital Microscope
MOQ : 1 pcs
Weight : 1 KG
$137
853AAA 3 in 1 BGA Rework Station
MOQ : 1 pcs
Weight : 11 KG
$235

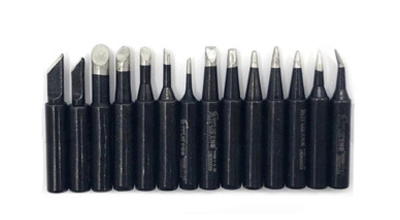

936 series soldering iron tip set
